Getting started with R and RStudio
R is the stats software we’ll be using in this course. RStudio is a user-friendly interface for R that simplifies how you interact with R. Together, the software will allow you to manage data, conduct statistical analyses, create high-quality graphics, automate your research, and make your work reproducible, just to name a few features.
If you haven’t already, go ahead and download R and RStudio, and then install the software. The installation instructions are straightforward and, even better, the software is free to use.
Once you’ve installed both programs you can launch RStudio like you would any other app. RStudio is able to directly interface with R so there’s no need to launch the R app.

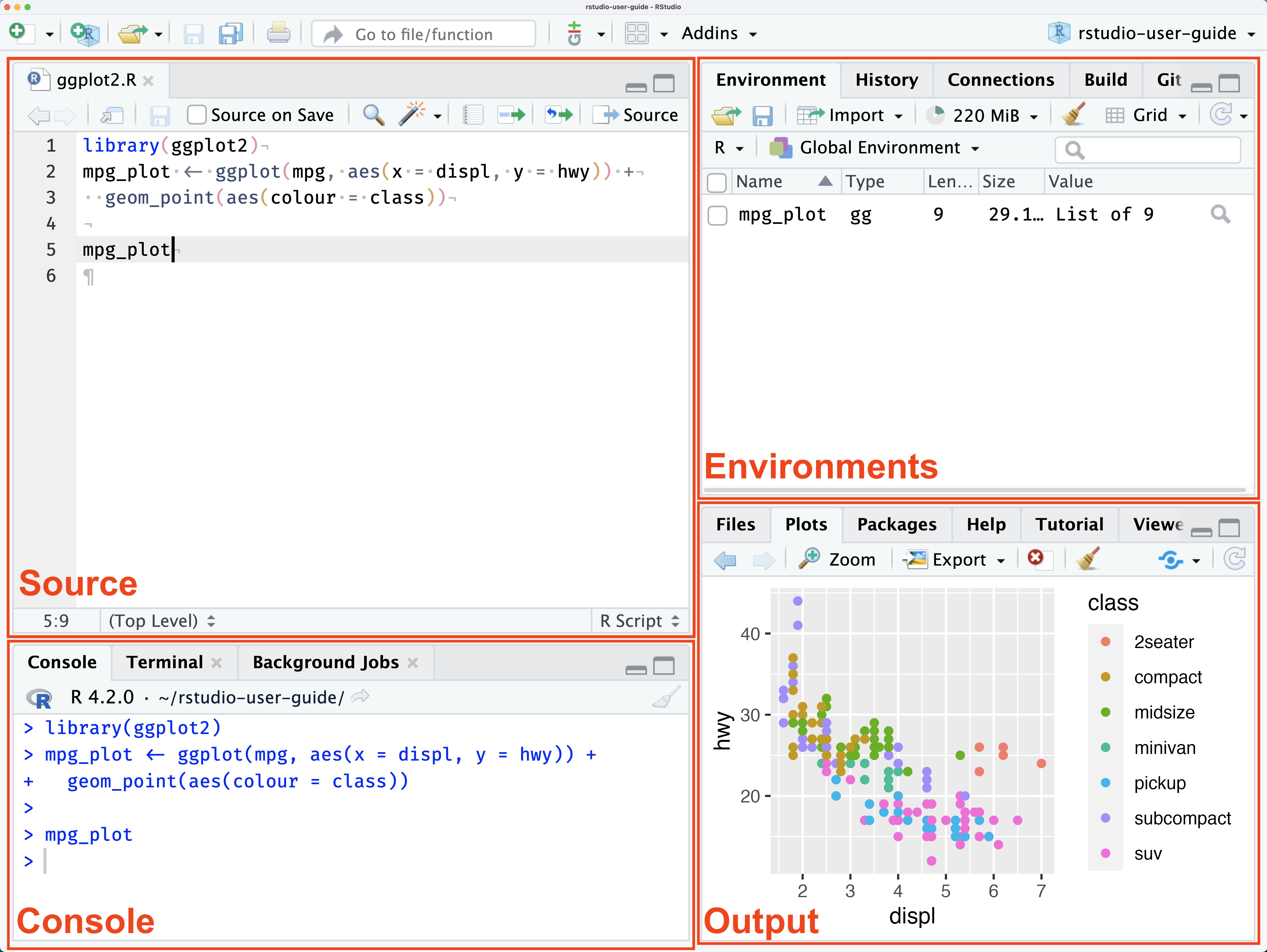

Below is a screenshot of the RStudio interface with descriptive labels for each of the four panes.
The RStudio interface with labels
Keep in mind that your interface could look a little different depending on the version you’re working with and any custom changes you make. You’ll become more familiar with why each feature is important, but for now here’s a quick rundown:
Source. This is where your code files will live. We’ll be using basic text files, called
.Rsource files, that include a series of commands you want to run that we’ll save for future use. In the most basic sense, commands tell R what you want it to do. When you’re ready to run a command, you can do directly from the source pane.Console. This is where the code from your source file is sent and executed. After you issue a command, this is also where the output of the command will show up. The console is essentially what R looks like without RStudio. You can also interactively run commands here, which we’ll cover later.
Environments. Here you’ll find a list of any dataframes you have loaded in R, along with other functions, vectors, plots, or tables you create. These are all listed in the environment tab and are collectively called objects. Don’t worry to much about about the terminology for now, just remember that you’ll find your data, plots, and tables listed here.
Output. There are several useful tabs in this pane. Here are the most important for now.
- Files. Shows you all of the files in your current/working directory. The working directory is the location on your computer where R will look for files, like datasets. This is also the location where any files you save, like figures and tables, will end up.
- Plots. After you create figures you’ll be able to view them here.
- Help. You can view help files here after you use the
help()command.
One more thing before we get started. Some installations of RStudio will default to a setting that will always load what is called a workspace every time you start RStudio. This can be useful in some instances, but it’s much more likely that this setting will cause problems down the road. Change this now! In the RStudio toolbar, go to Tools > Global Options. In the window that pops up, uncheck “Restore RData into workspace at startup” and set “Save workspace to RData on exit” to never. Here’s what your settings should look like:

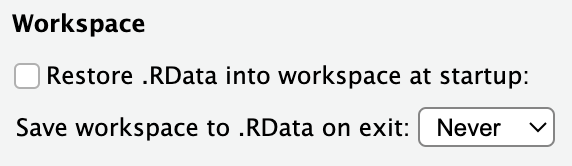

Here's what your workspace settings should look like
Let’s run some code

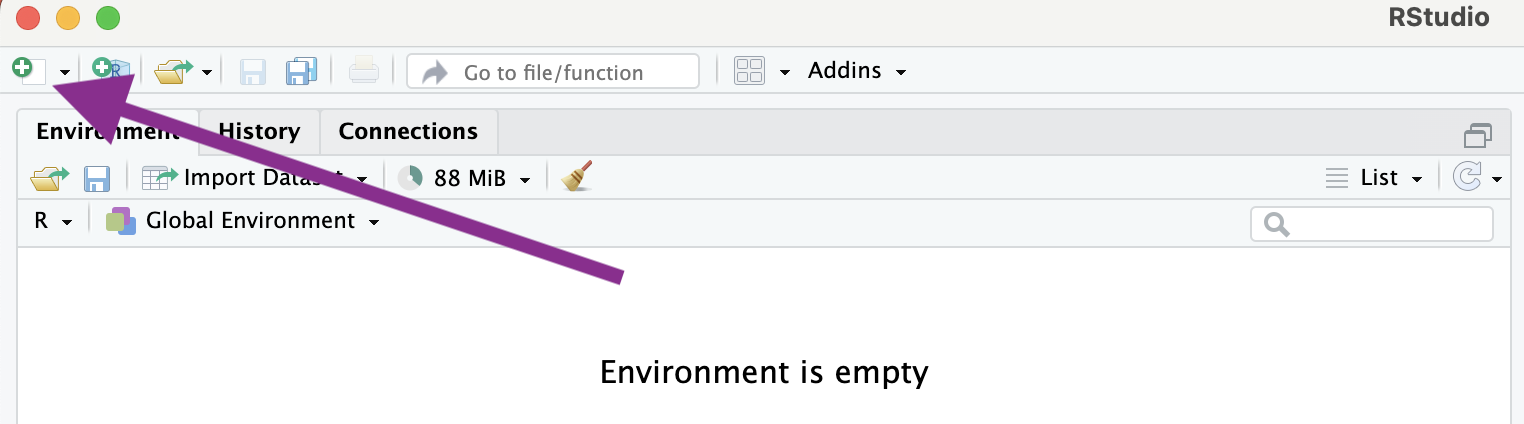

The first thing we’ll do to get started is open a new R script file. Here’s where to create a new script:
Start a new script file
After you have the new untitled blank file, save it to your computer. Make sure you note where it’s being saved so you can find it later.
We’ll start with a very basic command where we do some simple addition. Just type the following four numbers into your script: 5 + 20 + 16 + 8. Then, select the line you want to execute and click on Run.

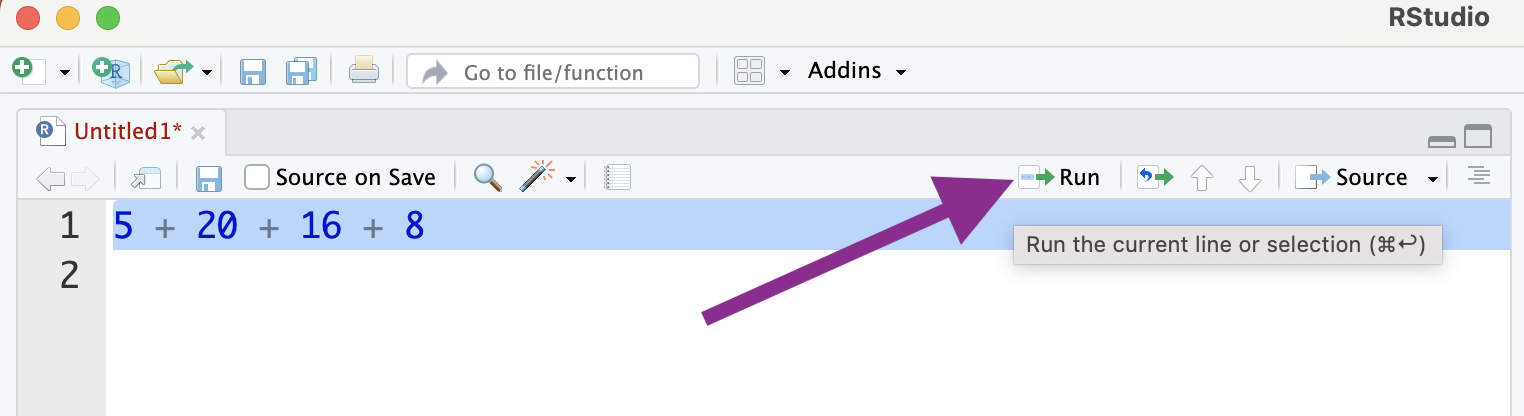

Run your code
Here’s what the code should look like, along with the result.
5 + 20 + 16 + 8
## [1] 49
We can easily calculate the mean of these values by making some minor changes to the previous code.
(5 + 20 + 16 + 8) / 4
## [1] 12.25
We are clearly just using R as a fancy calculator at this point, but let’s see how we can use some built in functions to accomplish the same tasks.
First, let’s create a vector that includes the values we used above. I named the object mynums, which we can then use to access the list of numbers.
mynums <- c(5, 20, 16, 8)
mynums
## [1] 5 20 16 8
Now we can use mynums to sum the numbers and calculate the mean. There are also many other potentially useful functions we can use to get info about the mynums series.
# Addition.
sum(mynums)
## [1] 49
# Average.
mean(mynums)
## [1] 12.25
# Median.
median(mynums)
## [1] 12
# Minimum.
min(mynums)
## [1] 5
# Maximum.
max(mynums)
## [1] 20
# Standard deviation.
sd(mynums)
## [1] 6.946222
# Notice how R ignores everything after the '#' symbol.
In the above example, we use the built in functions sum and mean to easily get the sum and average of the list of numbers included in the mynums object we created earlier. We also included examples of some other commonly used functions. Head to this post on Basic Functions in R for more details on functions in R.
Using comments in your script file
You may have noticed the # symbol included in the script file commands that describe the purpose of each line of code. R will ignore anything your write after the #. This is how we can add comments to our script files, which will be very important once you start to work on larger projects. Consistently using comments in your code will help serve as a reference for why you did what you did in your script file. It will also help other researchers using your code to understand the logic behind your coding approach.
Now let’s try with a dataset
In the above examples we used some very simple examples to get us started with running code and using functions in R. Of course, the series of numbers we used were just data we made up. Now, let’s use some real data and start learning the basics of analysis with R.
For most of this tutorial we’ll be using data provided by the authors of the excellent Essentials of Political Analysis. The data are available as an R package called RCPA3. Packages are a very important part of R that give us many additional functions and tools created by other R users. In fact, one of the first things we’ll do when starting a new script file is to download and load a handful of commonly used packages.
The first time using a package you’ll have to download it to your computer using the install.packages() command. Then, once the package is downloaded you’ll use the library() command to load/attach it to your current R session.
In addition to using the datasets from the RCPA3 package, we’ll also being using the tidyverse package. Tidyverse is actually a collection of several packages that we’ll use frequently. These tools will help make working with with your data much easier. This is particularly true when transforming and managing your data. Data transformation is the focus of later sections in this tutorial where we’ll talk more about the tidy approach to data processing. The tidyverse package also includes ggplot2, which provides the functions we’ll be using for data visualizations.
# Download the packages.
# You should only have to do this once if you use the same computer.
install.packages("RCPA3")
install.packages("tidyverse")
# Load the packages.
library(RCPA3)
library(tidyverse)
## ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
## ✔ dplyr 1.1.4 ✔ readr 2.1.5
## ✔ forcats 1.0.0 ✔ stringr 1.5.1
## ✔ ggplot2 3.5.1 ✔ tibble 3.2.1
## ✔ lubridate 1.9.3 ✔ tidyr 1.3.1
## ✔ purrr 1.0.2
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag() masks stats::lag()
## ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
Once the packages are loaded, we can take a look at the data. Here are a few functions you’ll want to use when you get started with a new dataset. Let’s take a look at the states data, which includes numerous variables for each of the 50 states.
# Get more info about a function.
# In this case, it's info about the states data.
help("states")
# Get the names of the variables in the dataframe.
names(states)
# Additional info about the variables in the dataframe.
glimpse(states)
The above functions are useful when getting acquainted with the structure of the data. Notice that with the glimpse() function we are given the variable names, type, and example values of the variable. Also, the first lines of output from glimpse provides the number of rows and columns of the dataframe. This is equivalent to the number of observations (rows) and variables (columns) in the data.
It can also be helpful to use RStudio’s built-in data viewer so you can browse the data like you would in the form of a spreadsheet.
# Browse the dataframe in RStudio's built-in viewer.
View(states)

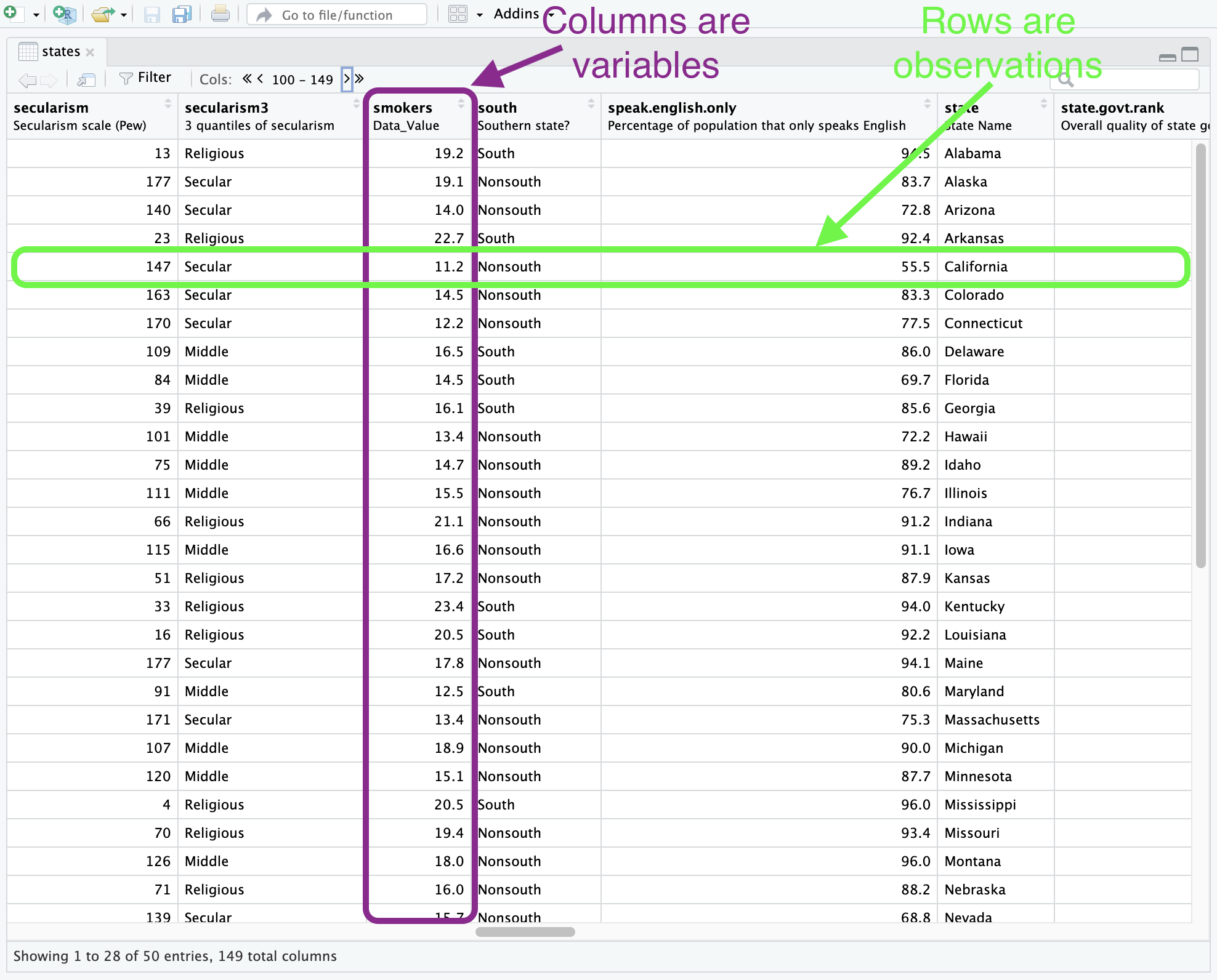

After using the View() function, you should have a new tab that includes the spreadsheet-style data viewer. It’s important to note the structure of the dataframe. In the screenshot it’s annotated to show that our data should always be organized so that our columns are variables and rows are our observations. This will be a particularly useful rule to follow if you are collecting or using data that are not already in R data format. This structure is also an essential requirement for keeping your data in tidy format. In other words, as long as you make sure your columns are variables and rows are observations, your data will be compatable with the tidyverse tools we’ll be using.
Data viewer

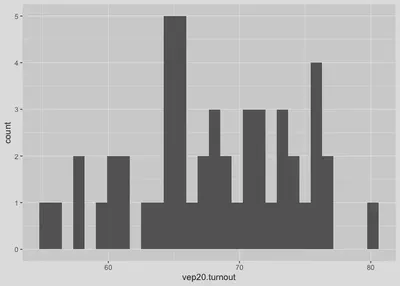

Now that we have some data to work with, let’s do some basic data visualization. We’ll start with a histogram, which provides an overview of a variable’s distribution. The variable we’ll plot is vep20.turnout, which is the state voter turnout rate in 2020.
# Histogram of voter turnout.
# First line includes data and variable to plot.
# Second line plots using the histogram.
fig.hist <- ggplot(states, mapping = aes(x = vep20.turnout)) +
geom_histogram()
fig.hist # Run the object we created to show the plot.
## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

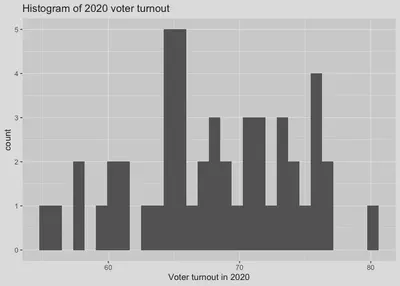

It’s also easy to add labels to the figure. The code below adds a third line to the histogram code we used so that the plot now includes an x-axis label and title.
# Histogram of voter turnout, now with labels.
fig.hist <- ggplot(states, mapping = aes(x = vep20.turnout)) +
geom_histogram() +
labs(x = "Voter turnout in 2020",
title = "Histogram of 2020 voter turnout")
fig.hist
## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

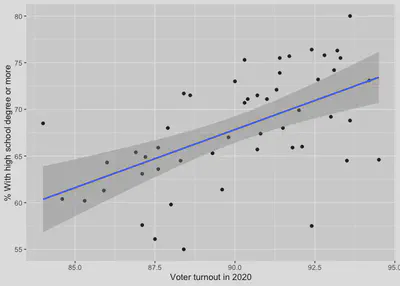

Now let’s plot a relationship. As an example, we might be interested in whether state voter turnout is related to state educational attainment. The hs.or.more variable is the percentage of those over 25 years of age who have earned at least a high school degree.
# Plot of the relationship between education and voter turnout.
# This is a scatterplot.
fig.scat <- ggplot(states, mapping = aes(x = hs.or.more, y = vep20.turnout)) +
geom_point() +
geom_smooth(method = "lm") +
labs(x = "Voter turnout in 2020",
y = "% With high school degree or more")
fig.scat
## `geom_smooth()` using formula = 'y ~ x'
In this figure we also included the geom_smooth() option. This gives the estimated linear relationship between voter turnout and education levels.
Describing variables
It’s typically a good idea to learn about the basic characteristics of the variables in a dataset, particularly when you’re using secondary data. This can be done by obtaining the descriptive statistics for the variables you plan on using, which includes measures of central tendency (e.g., mean, median, and mode) and dispersion (e.g., variance and standard deviation).
The method you use to describe a variable will depend on the variable’s level of measurement. Remember, the only measure of central tendency that is appropriate for a nominal variable is the mode, which we define as the most frequently occurring value. For ordinal variables, we can use the mode or the median. The mode, median, and mean can all be used for continuous variables. In fact, it’s probably wise to look at all of them since together the three measures can tell us about the symmetry of the variable’s distribution.
In the previous section we used the glimpse() command to get basic information about the variables in the states dataset, which includes the variable type. Variable types in R datasets can include numeric, integer, character, and factor. The variable type will not always correspond to the variable metric, but it can help with identifying the metric and is important to know when analyzing your data. It’s also important to keep in mind that a variable can be stored as a variable type that isn’t ideal for your analysis. When this happens we have to change the type, which will be covered in the data transformation section.
The gtsummary package is very useful for putting together descriptive statistics, particularly for continuous level variables. It let’s us customize the what we include in the descriptive statistics and the package makes it fairly easy to save the tables we create (for example, in ms word format). We’ll also need to create some tabulations of our nominal and ordinal level variables. For tabulations we’ll use the questionr package.
Let’s give it a try. Similar to the other packages we’ve used, you’ll have to install gtsummary and janitor the first time you use them We’ll also be using the RCPA3 and tidyverse packages.
# First install packages if you haven't already.
#install.packages("gtsummary")
#install.packages("janitor")
# Load the packages.
library(gtsummary)
library(janitor)
##
## Attaching package: 'janitor'
## The following object is masked from 'package:RCPA3':
##
## crosstab
## The following objects are masked from 'package:stats':
##
## chisq.test, fisher.test
library(RCPA3)
library(tidyverse)
states %>% # Dataset we want to use.
select(vep20.turnout, region, cig.tax.3cat) %>% # Select variables we want stats for.
tbl_summary(missing = "no") # Get the descriptive statistics.
| Characteristic | N = 50 |
|---|---|
| Percent turnout of voting eligible population in 2020 | 68.0 (64.5, 72.8) |
| Census region | |
| Northeast | 9 (18%) |
| Midwest | 12 (24%) |
| South | 16 (32%) |
| West | 13 (26%) |
| Cigarette tax per pack, 3 ordinal categories | |
| Low (under $1) | 12 (24%) |
| Medium ($1 - $3) | 29 (58%) |
| High (over $3) | 9 (18%) |
| 1 Median (IQR); n (%) |
A quick note on this code. This is the first time we are using %>%, which is called a pipe operator in tidy data language. The idea is that it allows you to “pipe” an object forward to one or more additional functions. In the command above we start with the states dataset, then use select() to choose the variables from the states dataset we want to work with, and finally use the tbl_summary() to get our descriptive statistics.
The first thing you might notice about the output is that the tbl_summary() function creates a nicely formatted table by default and diplays it for you in the viewer pane. It also gives the variable labels so we have more information than just the variable names. In our table we are getting descriptive statistics for voter turnout in the states, state region, and data on cigarette tax policies.
By default, tbl_summary() gives us different statistics depending on the variable measurement metric. The footnote of the table tells us that for continuous variables it is giving us the median and IQR, or interquartile range. IQR is just a fancy way of saying the 25th and 75th percentiles. For all other non-continuous variables we get the number of observations in each variable group along with the percentage. In this example, vep20.turnout is the only continuous variable while region and cig.tax.3cat are non-continuous. Both are considered categorical by tbl_summary() even though region is nominal and cig.tax.3cat is categorical. Below we’ll address why we might want different descriptive statistics for these different levels of measurement.
These default statistics are a good start, but it would be nice to have some additional information. For example, we’ll probably want the mean, variance, and standard deviation of our continuous variables. Here’s how we can get everything we need.
states %>%
select(vep20.turnout, region, cig.tax.3cat) %>%
tbl_summary(
statistic = list(
all_continuous() ~ "{mean}, {median}, {var}, {sd} /
[{p25}, {p75}] / [{min}, {max}]",
all_categorical() ~ "{p}% ({n})"
),
missing = "no",
) %>%
add_stat_label(location = "column")
| Characteristic | Statistic | N = 50 |
|---|---|---|
| Percent turnout of voting eligible population in 2020 | Mean, Median, Variance, SD / [IQR] / [Range] | 67.9, 68.0, 35.7, 6.0 /[64.5, 72.8] / [55.0, 80.0] |
| Census region | ||
| Northeast | % (n) | 18% (9) |
| Midwest | % (n) | 24% (12) |
| South | % (n) | 32% (16) |
| West | % (n) | 26% (13) |
| Cigarette tax per pack, 3 ordinal categories | ||
| Low (under $1) | % (n) | 24% (12) |
| Medium ($1 - $3) | % (n) | 58% (29) |
| High (over $3) | % (n) | 18% (9) |
In addition to getting the additional statistics we want, the code also slightly alters the stats we get for categorical variables (percentages with number of observations in parentheses). The last line adds some nice column labels.
The tbl_summary() command provides a number of descriptive statistics we might need for our variables, but there are limitations to the information we can get for categorical level variables. We might need, for instance, an easy way to determine the median value of an ordinal level variable. (Why can’t we use the median for our nominal level variable?) Frequency tables work well for this task, and they will also be essential when analyzing some bivariate relationships. Let’s create a tabulation of the cig.tax.3cat variable using the tabyl() function from the janitor package.
states %>%
tabyl(cig.tax.3cat)
## cig.tax.3cat n percent
## Low (under $1) 12 0.24
## Medium ($1 - $3) 29 0.58
## High (over $3) 9 0.18
This gives us a standard tabulation, which is nice but is essentially the same information given by tbl_summary(). The table will also include a valid percent column when your data has missing values (this variable doesn’t). It would be really helpful to also have a cumulative percentage column given that cig.tax.3cat is an ordinal level variable. This is easily done by adding a line using mutate() and the cumsum() functions.
states %>%
tabyl(cig.tax.3cat) %>%
mutate(cumu_percent = cumsum(percent))
## cig.tax.3cat n percent cumu_percent
## Low (under $1) 12 0.24 0.24
## Medium ($1 - $3) 29 0.58 0.82
## High (over $3) 9 0.18 1.00
We use mutate() when we want to change or create a new variable. The cumsum() function just returns the cumulative sum of whatever variable we pass to it, in this case we wanted the cumulative sum of the percentage column.
Now that we have the cumulative percentage, we know that the “Medium” category is the median value of the cigarette tax variable. (Remember, for the median value think 50th percentile.)
For some data, it can also be useful to give examples of which observations have high values and which have low values. For instance, we might be interested in which states have the highest and lowest levels of voter turnout. Here is one of many ways to accomplish this using arrange().
states %>%
select(state, vep20.turnout) %>%
arrange(vep20.turnout)
You’ll notice that this set of commands selects the variables state and vep20.turnout, then uses arrange() to sort these variables from lowest to highest by values of vep20.turnout. Now we can easily identify the states with low and high voter turnout.
In this example our data only includes 50 observations, so when the commands return the entire dataset it isn’t much of an issue. But if we had more observations we might want to limit the output to only a select number of low and high observations. We can do this using the head() and tail() functions.
states %>%
select(state, vep20.turnout) %>%
arrange(vep20.turnout) %>%
head(n = 5)
## state vep20.turnout
## 36 Oklahoma 55.0
## 4 Arkansas 56.1
## 11 Hawaii 57.5
## 48 West Virginia 57.6
## 42 Tennessee 59.8
states %>%
select(state, vep20.turnout) %>%
arrange(vep20.turnout) %>%
tail(n = 5)
## state vep20.turnout
## 47 Washington 75.7
## 49 Wisconsin 75.8
## 19 Maine 76.3
## 6 Colorado 76.4
## 23 Minnesota 80.0
This example gives us the 5 lowest and then 5 highest turnout states, but we could get any number by changing the value of the n= option.
Finally, depending on the data and variables you’re interested in describing, plotting your data can be very useful. In the last section we created a basic histogram of the vep20.turnout variable.
# Histogram from the last section.
fig.hist <- ggplot(states, mapping = aes(x = vep20.turnout)) +
geom_histogram()
fig.hist
Histograms work well for continuous measures, but aren’t designed for categorical data. The most common type of plot for ordinal and nominal level variables is the bar plot.

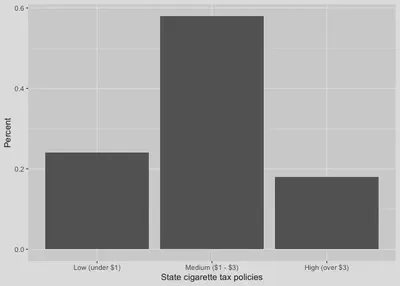

Since we already know how to create frequency tables, we’ll use these tables for plotting.
# Save frequency table as an object called "tabcig".
tabcig <- states %>%
tabyl(cig.tax.3cat)
# Use the object for the bar plot.
fig.bar <- ggplot(tabcig, mapping = aes(x = cig.tax.3cat, y = percent)) +
geom_col() +
labs(x = "State cigarette tax policies",
y = "Percent")
fig.bar
Plotting our variables is a useful way of visualizing the properties of the data in addition to using descriptive statistics.
Data transformation
Whether you’re using data you’ve collected on your own (primary data) or data collected by another researcher (secondary data), you’ll almost always have to make changes to the data. There are a few main reasons why you have to modify existing data. The first is when you have to alter variables so that they can more effectively be used to make descriptive inferences or to analyze relationships, which is sometimes referred to as “cleaning” the data. This typically needs to be done when a variable takes on values that you believe don’t belong in an analysis, like categories for missing data, or if you want to reverse the scale of a variable. Another situation you’ll encounter is when you want to combine the values of a variable into a smaller number of useful categories. A third scenario is when you have several variables that tap into aspects of the same concept and you want to combine these variables into single variable that more accurately measures the concept. In other words, using several indicators to create an index. Finally, you might want to create several indicator (or dummy) variables based on the categories of a nominal or ordinal level variable.
Here are some basic rules to follow when you do have to make changes to variables:
Avoid changing the original data file.
Examine the original data before creating a new variable.
Check your work after making a change.
Properly label any new variables you create.
Rescaling variables
One common type of transformation is changing the scale a variable is measured on. An example of this is when we have a variable that is measured in percentages that we want to be scaled to proportions (or vice versa). Another is when we need a variable measured in dollars that we would like to be scaled to thousands of dollars.
Let’s see how to perform one of these transformations using the states dataset. We’ll transform the schools.avg.salary variable, which is the average salary of school teachers in each state measured in dollars. It might be easier to understand the measure if we scale it so the values are represented in thousands of dollars. We’ll be using the RCPA3 and tidyverse packages.
library(RCPA3)
library(tidyverse)
states <- states %>%
mutate(schoolsal1k = schools.avg.salary / 1000)
This code first uses the <- assignment operator to replace the already existing states dataset so that the new variable we create is added to the data. The new variable is created using the mutate function, which allows us to change and add variables to a dataframe. We call the new variable schoolsal1k and make it equal to schools.avg.salary divided by 1000 using /. Looking at the two variables side-by-side we can see how they differ.
# Check the new variable.
states %>%
select(schoolsal1k, schools.avg.salary) %>%
head(n=10)
## schoolsal1k schools.avg.salary
## 1 48.518 48518
## 2 67.443 67443
## 3 47.218 47218
## 4 48.218 48218
## 5 77.179 77179
## 6 46.155 46155
## 7 72.013 72013
## 8 59.960 59960
## 9 49.199 49199
## 10 54.190 54190
We only used division in this example but we could use a number of math operators depending on what we need. The table below includes a list of commonly used operators in R.
Table: Mathematical operators in R
| Operator | Description |
|---|---|
| + | Addition |
| - | Subtraction |
| * | Multiplication |
| / | Division |
| ^ | Exponent |
Reversing a variable’s scale
There are also instances where it makes sense to reverse the scale of an existing variable in our dataset. A common reason for this kind of transformation is when a variable is coded so that higher values indicate less of the concept being measured. In these cases it’s a good idea to reverse the scale to avoid confusion and issues with interpretation. For an example of this we can look at the giffords.rank measure in the states dataset, which provides a state ranking of gun control laws. If we pay close attention to the ranking and the associated giffords.grade variable that provides a gun law grade for each state, we’ll notice that higher values of the state rankings variable indicates worse gun control laws.
states %>%
select(giffords.rank, giffords.grade) %>%
head(n=10)
## giffords.rank giffords.grade
## 1 37 F
## 2 42 F
## 3 45 F
## 4 39 F
## 5 1 A
## 6 15 C+
## 7 3 A-
## 8 11 B
## 9 24 C-
## 10 32 F
An easy way to reverse the scale of a numeric variable is to determine the max value of the scale and add one unit. Then, subtract the variable from the max + 1 value. Examining the gun control ranking, you’ll notice that it ranks each state from 1-50, so we’ll subtract the variable from 51 (50 + 1).
states <- states %>%
mutate(giffords.rank.rev = 51 - giffords.rank)
# Check the new variable.
states %>%
select(giffords.rank, giffords.rank.rev, giffords.grade) %>%
head(n=10)
## giffords.rank giffords.rank.rev giffords.grade
## 1 37 14 F
## 2 42 9 F
## 3 45 6 F
## 4 39 12 F
## 5 1 50 A
## 6 15 36 C+
## 7 3 48 A-
## 8 11 40 B
## 9 24 27 C-
## 10 32 19 F
Now our new giffords.rank.rev variable can be interpreted so that higher values on the ranking indicate stronger gun control laws in a state.
Recoding, grouping, and combining variables
The examples of transformation to this point have focused on numeric variables. When we need to make changes to non-numeric variables (think factor variables using nominal or ordinal metrics) the math operators we used earlier won’t be much help. Fortunately, the tidyverse package includes functions that are designed to help with a much broader set of recoding needs.
We can use the case_match() function when we only need the values of a single variable, while the case_when() function will be used for creating more complex variables based on multipe existing variables. Both functions will be used with mutate().
Here’s an example where we want to take the values of an existing variable and collapse them into fewer categories. We’ll be working with the voting.mail variable from the nes dataset. The variable measures whether respondents support or oppose voting by mail.
Let’s first take a look at a tabulation of the variable.
# Load the janitor package for the tabyl function.
library(janitor)
# Examine the variable.
nes %>%
tabyl(voting.mail)
## voting.mail n percent valid_percent
## 1. Favor a great deal 1268 0.153140097 0.15356667
## 2. Favor moderately 749 0.090458937 0.09071091
## 3. Favor a little 125 0.015096618 0.01513867
## 4. Neither favor nor oppose 3036 0.366666667 0.36768802
## 5. Oppose a little 136 0.016425121 0.01647087
## 6. Oppose moderately 723 0.087318841 0.08756207
## 7. Oppose a great deal 2220 0.268115942 0.26886278
## <NA> 23 0.002777778 NA
Given that most of the responses are clustered around three values, it might make sense to recode the variable into three groups: those who favor vote by mail (all three favor responses), those who neither favor nor oppose, and those who oppose (all three oppose responses). We can accomplish this using case_match() and create a new variable called voting.mail.3cat.
# Make sure you replace the nes data so your
# new variable is saved.
nes <- nes %>%
mutate(voting.mail.3cat = case_match(
voting.mail, # Variable values we'll be matching.
"1. Favor a great deal" ~ "3. Favor",
"2. Favor moderately" ~ "3. Favor",
"3. Favor a little" ~ "3. Favor",
"4. Neither favor nor oppose" ~ "2. Neither favor nor oppose",
"5. Oppose a little" ~ "1. Oppose",
"6. Oppose moderately" ~ "1. Oppose",
"7. Oppose a great deal" ~ "1. Oppose",
NA ~ NA_character_,
.ptype = factor(levels = c("1. Oppose", "2. Neither favor nor oppose", "3. Favor"), ordered = TRUE)
))
# Examine the variable.
nes %>%
tabyl(voting.mail.3cat)
## voting.mail.3cat n percent valid_percent
## 1. Oppose 3079 0.371859903 0.3728957
## 2. Neither favor nor oppose 3036 0.366666667 0.3676880
## 3. Favor 2142 0.258695652 0.2594163
## <NA> 23 0.002777778 NA
Note that when using case_match() we use the ~ symbol to indicate matches. For our first match in the above code we first listed the original value "1. Favor a great deal" then said we wanted all of these responses to be coded as "Favor". In the last line we use the .ptype option to indicate that we want the new variable voting.mail.3cat to be stored as a factor variable. The ordered = TRUE portion of this line makes sure we have an ordered factor.
In the above code we were very deliberate with listing each of the seven original categories and matching them to the appropriate new values. We could also combine all the values that need to be matched to "Favor" in one line.
# Make sure you replace the nes data so your
# new variable is saved.
nes <- nes %>%
mutate(voting.mail.3cat.v2 = case_match(
voting.mail, # Variable values we'll be matching.
c("1. Favor a great deal",
"2. Favor moderately",
"3. Favor a little") ~ "3. Favor",
"4. Neither favor nor oppose" ~ "2. Neither favor nor oppose",
c("5. Oppose a little",
"6. Oppose moderately",
"7. Oppose a great deal") ~ "1. Oppose",
NA ~ NA_character_,
.ptype = factor(levels = c("1. Oppose", "2. Neither favor nor oppose", "3. Favor"), ordered = TRUE)
))
# Examine the variable.
nes %>%
tabyl(voting.mail.3cat.v2)
## voting.mail.3cat.v2 n percent valid_percent
## 1. Oppose 3079 0.371859903 0.3728957
## 2. Neither favor nor oppose 3036 0.366666667 0.3676880
## 3. Favor 2142 0.258695652 0.2594163
## <NA> 23 0.002777778 NA
The results are exactly the same. The point of this exercise is show that there are alternate approaches to accomplishing the same task, and the latter version of the code might save you some time in your own work.
The next example uses case_match() to create a dummy variable, sometimes also referred to as an indicator, binary, or dichotomous variables. Regardless of the name used, the main characteristic of these variables as they take on only two values.
Here we’ll use the marital variable, again from the nes data. It takes on six different values related to respondent marital status. Our goal is to creat a new variable married01 that categorizes people into either a status of married or everything else.
# Examine the variable.
nes %>%
tabyl(marital)
## marital n percent
## 1. Married: spouse present 4315 0.5211352657
## 2. Married: spouse absent {VOL - video/phone only} 7 0.0008454106
## 3. Widowed 567 0.0684782609
## 4. Divorced 1221 0.1474637681
## 5. Separated 163 0.0196859903
## 6. Never married 1951 0.2356280193
## <NA> 56 0.0067632850
## valid_percent
## 0.5246838521
## 0.0008511673
## 0.0689445525
## 0.1484678988
## 0.0198200389
## 0.2372324903
## NA
We can use case_match() as we did in the previous example and match married to a married category, then specifically match all other categories to an other category. We can also save some time by using the .default option from case_match().
# Make sure you replace the nes data so your
# new variable is saved.
nes <- nes %>%
mutate(married01 = case_match(
marital,
"1. Married: spouse present" ~ "Married",
NA ~ NA_character_,
.default = "Other",
.ptype = factor(levels = c("Married", "Other"), ordered = TRUE)
))
# Examine the variable.
nes %>%
tabyl(married01)
## married01 n percent valid_percent
## Married 4315 0.521135266 0.5246839
## Other 3909 0.472101449 0.4753161
## <NA> 56 0.006763285 NA
You should notice that we first matched the married category to a similar married category. Nothing changed here. But we then matched all NAs to NA_character_, before defaulting all other values to "Other". The reason for this is that if we defaulted all other responses to "Other" without specifying that we want to keep NAs as they are, those NAs would have been included in the "Other" category. We don’t know how those NAs should be classified since they didn’t answer the question about marital status so we want to keep them as missing data.
For the next example we’re going to create a new variable based on the combination of two existing variables. To do this we’ll have to use logical operators, which will allow us to put together the proper combinations into new categories. We’ll again use the nes data, this time working with responses to questions about government action on climate change. The variable govt.act.warming asks respondents if the government should be doing more, less, or about the same amount to respond to rising temperatures. Another variable, govt.act.warm.str, records the strength of response for those who said the government should be doing more or less. These responses include “a great deal”, “a moderate amount”, or “a little”.
nes %>%
tabyl(govt.act.warming)
## govt.act.warming n percent valid_percent
## 1. Should be doing more 4759 0.57475845 0.58206947
## 2. Should be doing less 745 0.08997585 0.09112035
## 3. Is currently doing the right amount 2672 0.32270531 0.32681018
## <NA> 104 0.01256039 NA
nes %>%
tabyl(govt.act.warm.str)
## govt.act.warm.str n percent valid_percent
## 1. A great deal 3590 0.43357488 0.65296471
## 2. A moderate amount 1544 0.18647343 0.28082939
## 3. A little 364 0.04396135 0.06620589
## <NA> 2782 0.33599034 NA
What we want to end up is a new 7-point scale called govt.act.7 that ranges from those who want the government to do a great deal less about climate change to those who want to do a great deal more about climate change. Those who think that the government is doing right amount will be the middle category. For this exercise we’ll be using the case_when() function.
nes <- nes %>%
mutate(govt.act.7 = case_when(
govt.act.warming == "1. Should be doing more" &
govt.act.warm.str == "1. A great deal" ~ "7. A great deal more",
govt.act.warming == "1. Should be doing more" &
govt.act.warm.str == "2. A moderate amount" ~ "6. A moderate amount more",
govt.act.warming == "1. Should be doing more" &
govt.act.warm.str == "3. A little" ~ "5. A little more",
govt.act.warming == "3. Is currently doing the right amount" ~ "4. Doing the right amount",
govt.act.warming == "2. Should be doing less" &
govt.act.warm.str == "3. A little" ~ "3. A little less",
govt.act.warming == "2. Should be doing less" &
govt.act.warm.str == "2. A moderate amount" ~ "2. A moderate amount less",
govt.act.warming == "2. Should be doing less" &
govt.act.warm.str == "1. A great deal" ~ "1. A great deal less",
govt.act.warming == NA ~ NA_character_,
govt.act.warm.str == NA ~ NA_character_
))
# Examine the new variable.
nes %>%
tabyl(govt.act.7)
## govt.act.7 n percent valid_percent
## 1. A great deal less 316 0.03816425 0.03867809
## 2. A moderate amount less 302 0.03647343 0.03696450
## 3. A little less 123 0.01485507 0.01505508
## 4. Doing the right amount 2672 0.32270531 0.32705018
## 5. A little more 241 0.02910628 0.02949816
## 6. A moderate amount more 1242 0.15000000 0.15201958
## 7. A great deal more 3274 0.39541063 0.40073439
## <NA> 110 0.01328502 NA
To better understand the above code, let’s look closely at the first categorization we make within the case_when() function. The first part of the code govt.act.warming == "1. Should be doing more" &{.R} looks for those who responded to the govt.act.warming question by stating that government “Should be doing more”, and (indicated by &) then also matches those who said “A great deal” for the govt.act.warm.str question with govt.act.warm.str == "1. A great deal"{.R}. Finally, the code ~ "7. A great deal more"{.R} indicates that we want any respondents who match both conditions to be grouped into our new category “7. A great deal more”.
Using the logical operator == we denote equivalence and the & indicates that both conditions must hold. A list of commonly used logical operators in R is provided in the table below.
Table: Logical operators in R
| Operator | Description |
|---|---|
| > | Greater than |
| < | Less than |
| >= | Greater than or equal to |
| <= | Less than or equal to |
| == | Exactly equal to |
| != | Not equal to |
| | | Or |
| & | And |
Percentile categories from continuous measures
There may also be situations where you want to create a variable that captures a set of percentiles from an existing continuous level measure. The percentiles you use will depend on what’s needed from the new variable. Researchers will commonly use quartiles (dividing the original variable into four groups by quarters) or quintiles (dividing into five groups by one-fifths), but other percentile cutoffs can be used.
We’ve already covered how to obtain the percentiles of a variable, so one way to create a new measure along these lines would be to first get the percentile values you want to use. If we wanted to calculate quintiles we would use the 25th, 50th, and 75th percentiles as our cut points, then use the case_when() function to create the new variable.
Another approach is to use the cut() and quantile() functions to calculate the desired precentiles and categorize the existing continuous variable all in one or two lines of code. In addition to requiring less code, this approach is also more automated and less error prone.
Let’s use the world dataset to demonstrate how to create an ordered quartile variable based on the values of a continuous measure. We’ll use the variable named gini.index, which is a standard way to measure income inequality. Higher values on this measure indicate that a country has more economic inequality.
# Use quantile to get needed percentiles.
world %>%
select(gini.index) %>%
quantile(probs = c(0, .25, .50, .75, 1),
type = 2, na.rm = TRUE)
## 0% 25% 50% 75% 100%
## 24.2 32.8 36.7 42.8 63.0
With the quantile() function we use the probs = option to set the percentiles we want and set na.rm = TRUE so that the calculation ignores any missing data. The type = option sets the rules used to calculate the percentiles, including how ties are treated. There are nine different calculation types that can be used with quantile(), which are described in help("quantile"). For our purposes using type = 2 is a good option.
Now that we have the percentiles we need to group the gini.index variable into quartiles, we’ll use these values within the cut() function to appropriately group our observations into four quarters. We’ll call the new variable denoting quartiles of the gini index gini.index.4cat.
# Create gini index quartiles.
world <- world %>%
mutate(gini.index.4cat =
cut(gini.index,
quantile(gini.index,
probs = c(0, .25, .50, .75, 1),
type = 2, na.rm = TRUE)
))
# Examine the new variable.
world %>%
tabyl(gini.index.4cat)
## gini.index.4cat n percent valid_percent
## (24.2,32.8] 39 0.2307692 0.2532468
## (32.8,36.7] 39 0.2307692 0.2532468
## (36.7,42.8] 39 0.2307692 0.2532468
## (42.8,63] 37 0.2189349 0.2402597
## <NA> 15 0.0887574 NA
Note that the variable created using cut() labels the categories of the new variable with the cut points used to determine the groupings. If you just want the categories to be simple integers from 1 to 4, you can use the labels = FALSE option.
Creating an index
The final example of data transformation we’ll look at is when we’d like to create an index. An index is created by combining multiple measures that tap into a single underlying concept. One straightforward way to create an index is to use an additive approach where multiple indicators are added together to produce a single variable.
Let’s look at an example of one way to create an index of political donations using the nes dataset. The data include responses to three questions asking respondents whether they contributed to a candidate, political party, or any other political groups. The variables are polact.givecand, polact.giveparty, and polact.giveoth. If we tabulate one of the variables we’ll notice that the responses are simply recording “yes” or “no” whether respondents reported giving to any of these three groups.
nes %>%
tabyl(polact.givecand)
## polact.givecand n percent valid_percent
## 1. Yes 1473 0.1778986 0.1977447
## 2. No 5976 0.7217391 0.8022553
## <NA> 831 0.1003623 NA
If we want to create an additive index measuring the extent to which respondents made political contributions, our goal will be to end up with a variable ranging from 0 to 3. A 0 on this scale would indicate that the respondent reported that they didn’t give to any of these three groups, while a value of 3 would indicate that they made contributions to all three groups. Values of 1 or 2 would show that respondents gave to some but not all of the groups.
One way to accomplish this task would be to recode each of the three measures into numeric variables so that “yes” responses are equal to 1 and no responses are equal to 0. Then, we could create the index by adding the three numeric variables together.
A less time consuming approach is to use logical evaluations of the existing three variable to combine them into an index. The basic idea is to use the equal to expression == we discussed earlier to create a TRUE or FALSE logical outcome in R. Here’s an example of what this looks like with the polact.givecand variable.
# Summing logical outcomes.
nes %>%
select(polact.givecand) %>%
mutate(polact.givecand.logical = (polact.givecand == "1. Yes")) %>%
head(n=10)
## polact.givecand polact.givecand.logical
## 1 2. No FALSE
## 2 2. No FALSE
## 3 1. Yes TRUE
## 4 2. No FALSE
## 5 2. No FALSE
## 6 1. Yes TRUE
## 7 2. No FALSE
## 8 2. No FALSE
## 9 2. No FALSE
## 10 2. No FALSE
This is useful because summing these TRUE/FALSE outcomes will add up the number of TRUE values. Here’s a simple example of this.
TRUE + FALSE + TRUE
## [1] 2
Now we can use this information to construct our index, which we’ll call pol.index.
# Create additive index of political activities.
nes <- nes %>%
mutate(pol.index =
(polact.givecand == "1. Yes") +
(polact.giveparty == "1. Yes") +
(polact.giveoth == "1. Yes")
)
# Examine the new variable.
nes %>%
select(polact.givecand, polact.giveparty,
polact.giveoth, pol.index) %>%
head(n=10)
## polact.givecand polact.giveparty polact.giveoth pol.index
## 1 2. No 2. No 2. No 0
## 2 2. No 2. No 2. No 0
## 3 1. Yes 2. No 1. Yes 2
## 4 2. No 2. No 2. No 0
## 5 2. No 2. No 2. No 0
## 6 1. Yes 2. No 2. No 1
## 7 2. No 2. No 2. No 0
## 8 2. No 2. No 2. No 0
## 9 2. No 2. No 2. No 0
## 10 2. No 2. No 2. No 0
We’ll also want to double check our work and make sure that the new index takes on values that make sense given what we know about our three indicator variables. In other words, we expect pol.index to range from 0 to 3.
nes %>%
tabyl(pol.index)
## pol.index n percent valid_percent
## 0 5759 0.69553140 0.77385112
## 1 697 0.08417874 0.09365762
## 2 769 0.09287440 0.10333244
## 3 217 0.02620773 0.02915883
## NA 838 0.10120773 NA
Bivariate hypothesis testing
This section gives some basic examples of bivariate hypothesis tests. These analyses won’t be able to help us with controlling for potentially confounding variables since, by definition, these tests only include two variables. They will, however, help us answer the question of whether there is covariation between X and Y. Additionally, these tests will help us better understand the logic of hypothesis testing and also serve as the foundation for more advanced kinds of analyses.
It’s important to keep in mind that the type of bivariate hypothesis test you use will depend on the measurement metrics of your independent and dependent variables. The table below includes an overview of when to use the three different tests we’ll be covering: tabular analysis, difference of means, and correlation coefficients.
Table: Choosing the right bivariate test
| IV type: Categorical | IV type: Continuous | |
|---|---|---|
| DV type: Categorical | Tabular Analysis | Categorize IV, then tabular analysis (or logit/probit) |
| DV type: Continuous | Difference of Means | Correlation Coefficient |
Tabular analysis
We’ll start with an example of a tabular analysis. This means both the independent and dependent variable will have to be categorical measures. The nes dataset includes the variable climate.import, which measures how important climate change is to the respondents. Let’s examine whether party identity, partyid3, is associated with climate attitudes. It makes sense to set up our analysis so that climate.import is our dependent variable and partyid3 is the independent variable. This is important given that anytime we create a tabular analysis we want the dependent variable to be in the rows of our table and the independent variable to be in the columns.
For tabular analyses we’ll again be using the tabyl() function, which is what we’ve used to ask for basic tables of a single variable. If we include a second variable with tabyl(), it will give us a basic cross tabulation between the two variables. It’s important to note that your dependent variable should be the first variable listed in tabyl(), and your independent variable should be the second. This will make sure that your X is in the table columns and Y is in the rows.
library(RCPA3)
library(janitor)
tab1 <- nes %>% tabyl(climate.import, partyid3,
show_na = FALSE)
tab1 # Show the table results.
## climate.import 1. Democrat 2. Independent 3. Republican
## 1. Not at all important 45 248 650
## 2. A little important 130 395 605
## 3. Moderately important 457 637 616
## 4. Very important 769 604 270
## 5. Extremely important 1169 624 142
This is a good start, but you’ll notice that this only gives us the number of observations within each cell. What we need for a tabular analysis is the column percentages so that we can examine whether the importance of climate change systematically differs across levels of party identity. We can do this with some helper functions that come with the janitor package.
# Start with the basic results.
tab1 %>%
adorn_percentages("col") %>% # Get column percentages.
adorn_pct_formatting(digits = 1) %>% # Formatting
adorn_ns() # Include n for each cell.
## climate.import 1. Democrat 2. Independent 3. Republican
## 1. Not at all important 1.8% (45) 9.9% (248) 28.5% (650)
## 2. A little important 5.1% (130) 15.7% (395) 26.5% (605)
## 3. Moderately important 17.8% (457) 25.4% (637) 27.0% (616)
## 4. Very important 29.9% (769) 24.1% (604) 11.8% (270)
## 5. Extremely important 45.5% (1,169) 24.9% (624) 6.2% (142)
Now we’re able to interpret the results of the tabular analysis. If we focus on the “extremely important” category of the climate importance measure, we can see that around 46% of Democrats view climate change as extremely important, while the percentage for independents is 25% and only 6% for Republicans.
Is this relationship statistically significant? We can answer this using a chi-squared test on the tabulation.
# For chi-squared, only use basic tabulation.
chisq.test(tab1)
##
## Pearson's Chi-squared test
##
## data: tab1
## X-squared = 2008.1, df = 8, p-value < 2.2e-16
The results show a very small p-value that is close to zero, suggesting that the tabular relationship between climate.import and partyid3 is statistically significant.
Note that the chisq.test() function will only work on the basic table created by tabyl() without any added formatting. It won’t work, for example, if you try to pass a formatted table with percentages to chisq.test().
Difference of means
A difference of means test is commonly used when you have a categorical independent variable and a continuous dependent variable. For instance, let’s use the nes data to examine whether gender has an influence on feelings toward labor unions. The variable gender is categorical and ft.unions is a continuous feeling thermometer measure ranging from 0 to 100. Recall that with feeling thermometers higher values indicate more positive feelings about the group/person/topic being asked about.
We’ll be using the rstatix package to perform the difference of means test, so you’ll have to install the package if it’s the first time you’re using it.
install.packages("rstatix")
library(RCPA3)
library(rstatix)
tab.meandif <- nes %>%
t_test(ft.unions ~ gender, detailed = TRUE)
# View the results.
tab.meandif
## # A tibble: 1 × 17
## estimate estimate1 estimate2 .y. group1 group2 n1 n2 statistic
## * <dbl> <dbl> <dbl> <chr> <chr> <chr> <int> <int> <dbl>
## 1 -3.91 56.2 60.2 ft.unions 1. Male 2. Female 3327 3944 -6.88
## # ℹ 8 more variables: p <dbl>, df <dbl>, conf.low <dbl>, conf.high <dbl>,
## # method <chr>, alternative <chr>, p.adj <dbl>, p.adj.signif <chr>
In this example we’re using the t_test() function to conduct the difference of means test. Note that for this function you should always list the dependent variable first, then the independent variable, and they should be separated with ~. After the comma you’ll see that we include detailed = TRUE, which provides more information in the results than what you’ll get by default.
The results will likely be difficult to read in the console, so you’ll want to take a look at the table we created, tab.meandif.
View(tab.meandif)
Here’s a brief breakdown of the information provided in the columns we’ll mainly be interested in:
estimate: The difference in means.
estimate1, estimate2: The mean values of the two groups.
.y.: The y variable used in the test.
group1, group2: The compared groups in the pairwise tests.
n, n1, n2: Sample counts.
statistic: Test statistic (t value) used to compute the p-value.
df: Degrees of freedom.
p: p-value.
conf.low, conf.high: Lower and upper bound on a confidence interval.
In our analysis, Male is group 1 and Female group 2. Looking at the estimate results we can see that the average feelings toward labor unions for Male is 56.2 and for Female is 60.2. The mean difference is -3.91, where feelings for unions are more positive for the Female group. But is this difference statistically different from zero? The estimated p-value is very close to zero, suggesting the difference in means is statistically significant.
Correlation coefficient
Finally, a correlation coefficient is a useful bivariate hypothesis test when we are analyzing two continuous level variables. In the world dataset we can test whether perceptions of corruption in each country are influenced by levels of economic freedom. The variable corrupt.perception is a corruption perception index where higher values (unexpectedly) indicate less corruption. For the econ.freedom measure, higher values mean more economic freedom.
To calculate the correlation coefficient between these two variables we’ll again be using the rstatix package.
library(rstatix)
tab.corr <- world %>%
cor_test(corrupt.perception, econ.freedom)
# Examine the results.
tab.corr
## # A tibble: 1 × 8
## var1 var2 cor statistic p conf.low conf.high method
## <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <chr>
## 1 corrupt.perception econ.fr… 0.75 14.0 1.38e-29 0.667 0.807 Pears…
The results returned by the cor_test() function give us everything we need to assess the relationship between our variables. Unlike the tabular analysis and difference of means test, the correlation coefficient doesn’t make a distinction between independent and dependent variables, so the estimated correlation will be the same regardless of how you list the variables.
In the output, we can see that the estimated correlation between corruption perceptions and economic freedom is 0.75, indicating a positive relationship. This suggests that countries with more economic freedom are also perceived to be “cleaner,” or have less corruption. The very small p-value also tells us that the estimated correlation is statistically significant.
Keep in mind that it’s possible to get correlation estimates for more than two variables using the cor_test() function. Also, the rstatix package includes a cor_mat() function that will produce a correlation matrix, which can be useful if you’re examining the correlations among several variables.
As an example, we can get a correlation matrix for corruption perceptions, economic freedom, and corporate tax rates using the following code.
# Get a correlation matrix.
# Note that this function only works with three or more variables.
world %>%
cor_mat(corrupt.perception, econ.freedom, corp.tax.rate) %>%
pull_lower_triangle() # only include lower part of the matrix.
## rowname corrupt.perception econ.freedom corp.tax.rate
## 1 corrupt.perception
## 2 econ.freedom 0.75
## 3 corp.tax.rate -0.28 -0.43
You’ll notice that the correlation matrix only includes correlation coefficients, so you’ll need to use cor_test() if you need p-values for the estimates.
Visualizing relationships
A nice complement to the methods we used to conduct bivariate hypothesis tests is to visually present the relationship between your two variables of interest. Just like hypothesis testing, the type of plot needed to visualize relationships will depend on the measurement metrics of the variables. We’ll use the same examples from above to see how we can produce nice plots that can supplement our hypothesis tests.
Returning to our examination between climate.import and partyid3, recall that both variables are categorical measures. In this case, it’s often useful to create a bar plot of the two categorical variables for presentation.
We already created a tabular analysis between climate.import and partyid3, so all we have to do now get those results into a format that’s suitable for plotting. For the bar plot we typically only need percentages for each group of the independent variable, meaning we don’t need the raw counts from the tabulation we created earlier.
library(RCPA3)
library(tidyverse)
library(janitor)
tab1.gg <- nes %>% tabyl(climate.import, partyid3,
show_na = FALSE) %>%
adorn_percentages("col") # Get column percentages.
tab1.gg # Show the table results.
## climate.import 1. Democrat 2. Independent 3. Republican
## 1. Not at all important 0.01750973 0.09888357 0.28471310
## 2. A little important 0.05058366 0.15749601 0.26500219
## 3. Moderately important 0.17782101 0.25398724 0.26982041
## 4. Very important 0.29922179 0.24082935 0.11826544
## 5. Extremely important 0.45486381 0.24880383 0.06219886
These are the values needed for the plot, but we need to make one additional change to the dataframe we created. Because we’re using ggplot() to create our figures, the data needs to be in what is referred to as “long” format. All this means is rearranging the data a little, which is made fairly easy if we use the pivot_longer() function.
# Transform data to long.
tab1.gg <- pivot_longer(tab1.gg,
cols = !climate.import,
names_to = "pid")
tab1.gg # Show the table results.
## # A tibble: 15 × 3
## climate.import pid value
## <ord> <chr> <dbl>
## 1 1. Not at all important 1. Democrat 0.0175
## 2 1. Not at all important 2. Independent 0.0989
## 3 1. Not at all important 3. Republican 0.285
## 4 2. A little important 1. Democrat 0.0506
## 5 2. A little important 2. Independent 0.157
## 6 2. A little important 3. Republican 0.265
## 7 3. Moderately important 1. Democrat 0.178
## 8 3. Moderately important 2. Independent 0.254
## 9 3. Moderately important 3. Republican 0.270
## 10 4. Very important 1. Democrat 0.299
## 11 4. Very important 2. Independent 0.241
## 12 4. Very important 3. Republican 0.118
## 13 5. Extremely important 1. Democrat 0.455
## 14 5. Extremely important 2. Independent 0.249
## 15 5. Extremely important 3. Republican 0.0622
You’ll notice that this didn’t change any values or categories in the data, it only restructured the dataframe to the long format.
In the pivot_longer() function, we used the cols = option to specify that we rearrange all of the column values except for the climate.import column. The exclamation point ! indicates NOT, so !climate.import uses all columns that are not climate.import. The names_to = option gives a name to the new column that will include the old column names as observations.
The final step before plotting is to decide which category of the dependent variable we want to focus on and include in our figure. The reason for this is that there’s no simple way to plot of this information in one figure. For an ordinal dependent variable like this one, it often makes sense to select the highest value. For our example, we can use those who believe that climate change is “extremely important”. Another option is to combine some of the high values into one new group and use that for plotting. For now, let’s just plot the “extremely important” category. To do this, we’ll create a subset of the values we have in the tab1.gg dataframe.
# Get subset of table for plotting.
tab1.ggsub <- tab1.gg %>%
filter(climate.import == "5. Extremely important")
tab1.ggsub # Show the table results.
## # A tibble: 3 × 3
## climate.import pid value
## <ord> <chr> <dbl>
## 1 5. Extremely important 1. Democrat 0.455
## 2 5. Extremely important 2. Independent 0.249
## 3 5. Extremely important 3. Republican 0.0622

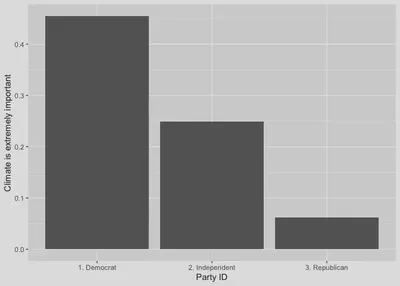

Now we’re ready to plot our data. For this figure, our percentages for the climate importance category will go on the y-axis and the party ID categories will go on the x-axis. Note that for instances where we need a bar plot for values that don’t need any additional calculations we’ll be using geom_col() for the plot.
# Bar plot.
plot1 <- ggplot(tab1.ggsub, aes(y = value, x = pid)) +
geom_col() +
labs(y = "Climate is extremely important",
x = "Party ID")
plot1 # Show the plot.

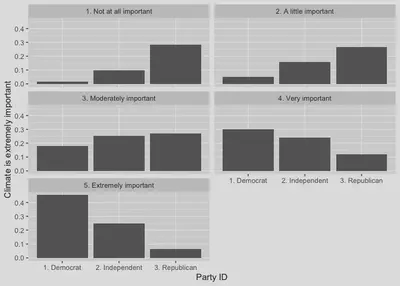

As noted above, selecting one of the categories of the dependent variable to work with simplifies our visualization. We could, however, choose to plot all of the information we have about the relationship between party ID and importance of climate change. One way to do this would be to get separate plots for each of the five categories from our dependent variable climate.import. A straightforward approach for this example would be to use facets.
# Bar plot.
plot1b <- ggplot(tab1.gg, aes(y = value, x = pid)) +
geom_col() +
labs(y = "Climate is extremely important",
x = "Party ID") +
facet_wrap(vars(climate.import), ncol = 2)
plot1b # Show the plot.
This plot offers more detail regarding the relationship between our two variables. It’s up to you as a researcher to decide what works best for your analysis.
In our example of analyzing the relationship between continuous dependent variable and categorical independent variable, we examined gender and feelings toward labor unions. There are several options for visualizing relationships like this. We’ll cover two common approaches. The first is again using the bar plot. In this case, all we need is our bars to represent the average feeling thermometer rating ft.unions for unions across the female and male categories of gender.

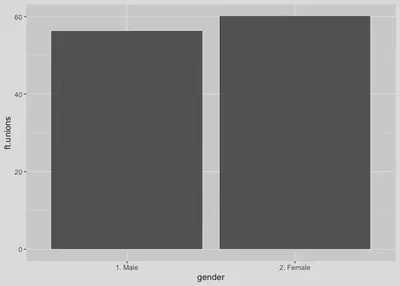

# Example using a bar plot.
nes %>%
drop_na(ft.unions, gender) %>%
ggplot(aes(y = ft.unions, x = gender)) +
geom_bar(stat = "summary", fun = "mean")
Notice that the figure is created using the geom_bar() plot, which does the work of calculating the mean of ft.unions by categories of gender by specifying the options stat = "summary", fun = "mean".

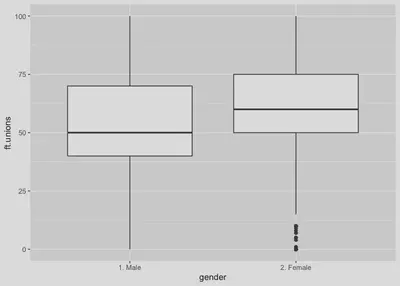

Another way to graphically present the relationship between our ft.unions and gender variables is to use a box plot, which is sometimes called a box and whisker plot.
# Example using a box plot.
nes %>%
drop_na(ft.unions, gender) %>%
ggplot(aes(y = ft.unions, x = gender)) +
geom_boxplot()
A nice feature of the box plot is that it gives us multiple pieces of information about our data. First, the line running through the middle of each box represents the median value. The outer edges of the boxes indicate the 25th and 75th percentile of the data. The lines extending from the boxes, or whiskers, extend to 1.5 times the 25th and 75th percentiles. Finally, any data points that fall outside of the whiskers will be plotted individually.

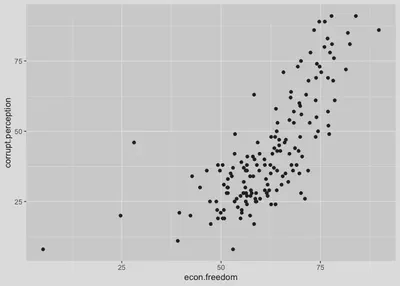

The final hypothesis test we conducted was between two continuous level variables, corrupt.perception and econ.freedom. We can use a scatter plot to visualize the relationship between these two variables.
# Scatter plot.
world %>%
ggplot(aes(y = corrupt.perception, x = econ.freedom)) +
geom_point()

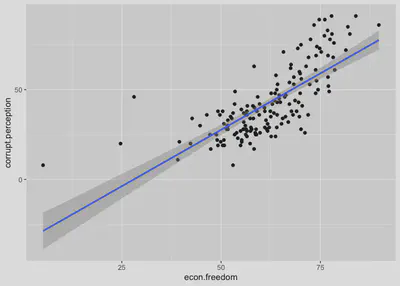

We can also add a linear fit line if needed.
# Scatter plot with a linear fit line.
world %>%
ggplot(aes(y = corrupt.perception, x = econ.freedom)) +
geom_point() +
geom_smooth(method = "lm")
Regression
In the previous section we mentioned that while bivariate hypothesis tests provide a straightforward way of examining the relationship between two variables, the workhorse of hypothesis testing is regression analysis. Recall that the basic regression model looks this:
$$ Y_i = \hat{\alpha} + \hat{\beta_1}X_i + \hat{u}_i $$
Where we are modeling our dependent variable $Y_i$ as a function of our independent variables. In this case, only a single independent variable $X_i$. In R, the lm() function allows us to fit a linear regression model.
Bivariate regression
To start, let’s use a simple example that includes a single independent variable. We’ll test a classic political science theory arguing that democratic nations are less likely than non-democratic nations to experience conflict. The world dataset includes the variable peace.index, which is a measure of how peaceful a country is. This will be our dependent variable. For our independent variable we’ll use the democracy index fh.democ.score.
library(RCPA3)
library(tidyverse)
library(janitor)
# Regression analysis.
mod1 <- lm(formula = peace.index ~ fh.democ.score, data = world)
mod1 # Show regression results.
##
## Call:
## lm(formula = peace.index ~ fh.democ.score, data = world)
##
## Coefficients:
## (Intercept) fh.democ.score
## 2.32417 0.01113
summary(mod1) # More detailed results.
##
## Call:
## lm(formula = peace.index ~ fh.democ.score, data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.25576 -0.19896 0.04484 0.24890 0.79444
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 2.3241670 0.0606010 38.35 <2e-16 ***
## fh.democ.score 0.0111332 0.0009834 11.32 <2e-16 ***
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3766 on 159 degrees of freedom
## (8 observations deleted due to missingness)
## Multiple R-squared: 0.4463, Adjusted R-squared: 0.4428
## F-statistic: 128.2 on 1 and 159 DF, p-value: < 2.2e-16
confint(mod1) # Get confidence intervals.
## 2.5 % 97.5 %
## (Intercept) 2.204480301 2.44385371
## fh.democ.score 0.009190979 0.01307541
First, let’s review what we’re including in the lm() function for the linear regression. For formula = we always list the dependent variable first, then the ~ followed by our independent variables. For data = we list the dataset being using for our analysis.
You’ll notice that just listing the object we used to store the regression results doesn’t include all of the information we’ll need for hypothesis testing. Instead, we’ll almost always use summary() to get more details about our regression model and results. Importantly, summary() provides the coefficient estimates, standard errors, t-values, and p-values. It also uses stars * to indicate whether each coefficient is statistically significant at different levels. Significance at the 0.05 level is indicated by a single star, so when a coefficient has one or more stars next to it you’ll know that it’s statistically significant at the 0.05 level at a minimum.
The results from our example show an estimated coefficient of 0.01 for the democracy score variable fh.democ.score. The interpretation is that a unit increase in the democracy score leads to a 0.01 increase in a country’s peacefulness. Given the very small p-value, along with the three stars next to the fh.democ.score coefficient, we can also say that this effect is statistically different from zero.
The last section of results includes both the R-squared and adjusted R-squared statistics. We’ll almost always prefer the adjusted R-squared since it corrects for adding additional independent variables to the regression model. In the example our adjusted R-squared of 0.44 suggests that our regression model explains around 44% of the variance in our dependent variable peace.index.
Another potentially useful function after fitting a regression model is confint(), which gives us confidence intervals for each coefficient in the model. By default it will give us 95% confidence intervals, but this can be changed if needed by using the level = option.
Returning to the basic regression model, we can use the variables from our example above along with the estimated coefficients to demonstrate how each component fits with our data. Recall that we can express the model as:
$$ Y_i = \hat{\alpha} + \hat{\beta_1}X_i + \hat{u}_i $$
Replacing Y with our dependent variable and X with our independent variable we get:
$$ peace.index = \hat{\alpha} + \hat{\beta_1}*fh.democ.score + \hat{u}_i $$
After fitting the model, we can also include the parameter estimates:
$$ peace.index = 2.324 + 0.011*fh.democ.score $$
We could now use this equation to get predicted values of our dependent variable peace.index by simply replacing fh.democ.score with a value of interest. For example, a fairly low democracy score value from the data is 28, while a value of 83 would be considered relatively high. What would we expect the peace index to be for each of these values?
$$ peace.index = 2.324 + 0.011*28 = 2.63 $$
For the high value:
$$ peace.index = 2.324 + 0.011*83 = 3.24 $$
These results should be intuitive given that the democracy score has a positive effect on the peace index. Higher democracy scores lead to higher levels of peace.
Multiple regression
While the regression example we covered above is a good start, one of the central features of regression analysis is that it allows us to statistically control for multiple variables when using an observational research design. Again consider the democratic peace theory. Our bivariate analysis provides support for the idea that more democratic nations are less likely to be engaged in conflict, but there are many potentially confounding factors that aren’t considered in the model. One is economic conditions. Countries that are more democratic might also have stronger economies that are more closely connected to other places with strong economies. As a result, these countries tend to be more peaceful, not because of democracy but because of their economic reliance on each other. Another possible confounder is a country’s social makeup. If a place has more differences that lead to biases in rights and representation, it’s likely that these issues will spill over into conflict. One source of these types of disputes is ethnic fractionalization, which indicates how much ethnic diversity exists in a country.
Building on the earlier regression model of peacefulness, we can incorporate measures of economic strength and ethnic diversity using measures from the world dataset. The variables are gdp.percap and frac.eth. To add more than one independent variable to our regression model, we only have to include the + sign to our regression formula to separate our measures.
# Multiple regression analysis.
mod2 <- lm(formula = peace.index ~ fh.democ.score + gdp.percap + frac.eth,
data = world)
summary(mod2) # Show results.
##
## Call:
## lm(formula = peace.index ~ fh.democ.score + gdp.percap + frac.eth,
## data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.20216 -0.13216 0.04874 0.24636 0.65142
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 2.438e+00 9.948e-02 24.505 < 2e-16 ***
## fh.democ.score 7.357e-03 1.120e-03 6.571 8.97e-10 ***
## gdp.percap 7.721e-06 1.742e-06 4.432 1.86e-05 ***
## frac.eth -1.057e-01 1.281e-01 -0.825 0.411
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3424 on 141 degrees of freedom
## (24 observations deleted due to missingness)
## Multiple R-squared: 0.5037, Adjusted R-squared: 0.4931
## F-statistic: 47.7 on 3 and 141 DF, p-value: < 2.2e-16
When reviewing the results of the multiple regression model we have to keep in mind that the interpretation of the estimated coefficients differs relative to the bivariate model. For any of the independent variables in the model, we can say that a one unit increase in the variable leads to a $\hat{\beta}$ change in the dependent variable while controlling for the effect of all other variables.
Returning to the effect of democracy on peace, the estimated coefficient suggests that a unit increase in fh.democ.score leads to a 0.007 increase in peace.index controlling for all other variables (i.e., controlling for gdp.percap and frac.eth). Given the p-value, we can again say that this effect is statistically significant.
It’s also important to note that relative to the simple bivariate model, the size of the estimated effect for fh.democ.score is smaller when controlling for gdp.percap and frac.eth. The coefficient in the second model is 0.007 and 0.011 in the first model. This suggests that without the control variables, the first model provides an inflated estimated effect of democracy, likely due to omitted variable bias.
It’s also important to think about how we can assess the magnitude of the effect each of our variables has on the dependent variable. Since it’s often the case that the variables we include in a regression model are measured using different metrics or scales, it isn’t appropriate to simply compare the estimated coefficients. Let’s make this point clear by looking at the democracy score and GDP measures.
library(gtsummary)
world %>%
select(fh.democ.score, gdp.percap) %>%
tbl_summary(
statistic = list(
all_continuous() ~ "{mean}, {sd} /
[{p25}, {p75}] / [{min}, {max}]",
all_categorical() ~ "{p}% ({n})"
),
missing = "no",
)
| Characteristic | N = 169 |
|---|---|
| Freedom House rating of democracy | 55, 30 /[28, 83] / [1, 100] |
| Gross domestic product per capita (in U.S. dollars) | 20,217, 20,960 /[4,389, 29,799] / [752, 114,482] |
| 1 Mean, SD / [IQR] / [Range] |
Our descriptive statistics show us that the democracy score ranges from 1 to 100, while per capita GDP ranges from $752 to $114,482. Thinking about how to interpret our regression coefficients, a one unit increase in the democracy score is very different from a one unit increase in per capita GDP.
Because of this, we have to find a reasonable way to compare the estimated effects from our regression models. This is where the standard deviation can be helpful. We can calculate how a standard deviation change in each independent variable of interest effects the dependent variable. From our summary table, we can see that the sd of fh.democ.score is 30 and the sd of gdp.percap is 20,960.
# sd change in fh.democ.score.
0.007 * 30
## [1] 0.21
# sd change in gdp.percap.
0.00001 * 20960
## [1] 0.2096
We can interpret these results as: a standard deviation change in democracy score leads to a 0.21 change in the peace index. Similarly, a a standard deviation change in per capita GDP leads to a 0.2096 change in the peace index.
Hopefully this exercise demonstrates the importance of estimating the magnitude of the estimated effects in our models. Even though the coefficients for democracy score and GPD are very different, we can see that the two variables have essentially the same effect size once we calculate estimates that are comparable.
Interpreting factor variables
To this point we’ve focused on regression model examples that include variables measured on continuous scales. It’s also common to incorporate factor or categorical variables in our models. When we do include these variables, it’s important to note that our interpretation of the estimated effects will be slightly different.
Before discussing how to interpret models with categorical variables, we have to consider how these models are estimated. First, including a factor variable requires that each category of the variable has a separate estimated coefficient. But, without getting into too much detail, we can’t estimate a regression model that includes all categories of the variable. Instead, R will leave out one category by default so that the model can be estimated. The category that is excluded from the model now becomes the reference group. This is important for interpreting our results because the estimated effect of each category is relative to the reference group.
Let’s return to our regression example examining whether democracies are less likely to experience conflict. In the models above we use a democracy index to test this question, but we could also use a simplified variable that categorizes countries into regime type. The world dataset includes the variable regime.type3, which we can use in place of the fh.democ.score measure.
Before running the new model, let’s take a quick look at the categories included in the regime.type3 variable.
world %>%
tabyl(regime.type3)
## regime.type3 n percent valid_percent
## Dictatorship 61 0.3609467 0.4586466
## Parliamentary democ 41 0.2426036 0.3082707
## Presidential democ 31 0.1834320 0.2330827
## <NA> 36 0.2130178 NA
As the variable name implies, the measure includes three classifications: dictatorships, parliamentary democracies, and presidential democracies. Let’s keep these groups in mind when we examine the regression results.
# Multiple regression analysis.
# Replace democracy index with simple regime type.
mod3 <- lm(formula = peace.index ~ regime.type3 + gdp.percap + frac.eth,
data = world)
summary(mod3) # Show results.
##
## Call:
## lm(formula = peace.index ~ regime.type3 + gdp.percap + frac.eth,
## data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.2779 -0.1666 0.0861 0.2321 0.7208
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 2.691e+00 1.065e-01 25.278 < 2e-16 ***
## regime.type3Parliamentary democ 1.861e-01 9.212e-02 2.021 0.0456 *
## regime.type3Presidential democ 6.185e-02 8.518e-02 0.726 0.4692
## gdp.percap 1.105e-05 1.912e-06 5.779 6.07e-08 ***
## frac.eth -8.753e-02 1.562e-01 -0.560 0.5764
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3785 on 120 degrees of freedom
## (44 observations deleted due to missingness)
## Multiple R-squared: 0.3669, Adjusted R-squared: 0.3458
## F-statistic: 17.39 on 4 and 120 DF, p-value: 2.811e-11
Notice that the results include two separate estimates for regime.type3, one for parliamentary democracies and one for presidential democracies. By default, R will use the first listed category as the reference group when estimating a model that includes a factor variable. In this case, “dictatorship” is used as the omitted group.
When interpreting these results, we have to keep in mind that the effect each regime.type3 estimate is relative to dictatorships. For example, parliamentary democracies has an estimated coefficient of 0.186. This can be interpreted as: parliamentary democracies have a 0.186 higher peace index when compared with dictatorships, holding all other variables constant. Given the estimated p-value for this coefficient, we can say that this effect is statistically different from zero. The estimated effect for presidential systems is interpreted similarly (i.e., relative to dictatorships), but for this coefficient you should notice that it is not statistically significant.
It’s also important to note that the lm() regression function will treat ordered factor variables differently from unordered factors like the regime.type3 measure we used above. For an ordered factor, the default analysis will model the variable as a series of polynomial functions (sometimes called contrasts). This isn’t what most researchers want when modeling an ordinal measure, so it’s often the case that you’ll want to change how ordered factors are modeled.
There are a few different ways to adjust your regression analysis when you want to include an ordered factor as an independent variable in your model. The first step is to confirm that the variable is in fact an ordered factor. One clear indication that your variable is an ordered factor will be your estimated results from your regression model. Instead of appending your factor variable with category names for each coefficient estimate, your results will include estimates for your factor variable that are appended with .L, .Q, .C, ^4, ^5, etc., depending on the number of categories that the factor includes. These indicators refer to the polynomial functions that are being modeled: linear, quadratic, cubic, and so on. Here’s an example where we can compare the regression results for the regime.type3 variable with econ.freedom.5cat, which is a measure of overall economic freedom in a country.
# Add econ.freedom.5cat, an ordered factor.
mod4 <- lm(formula = peace.index ~ regime.type3 + gdp.percap +
frac.eth + econ.freedom.5cat,
data = world)
summary(mod4) # Show results.
##
## Call:
## lm(formula = peace.index ~ regime.type3 + gdp.percap + frac.eth +
## econ.freedom.5cat, data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.35116 -0.12323 0.06941 0.19744 0.71264
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 2.888e+00 1.208e-01 23.912 < 2e-16 ***
## regime.type3Parliamentary democ 1.570e-01 8.569e-02 1.832 0.06963 .
## regime.type3Presidential democ -8.000e-03 7.653e-02 -0.105 0.91693
## gdp.percap 5.230e-06 2.582e-06 2.026 0.04515 *
## frac.eth -3.733e-02 1.399e-01 -0.267 0.79010
## econ.freedom.5cat.L -4.747e-01 1.729e-01 -2.746 0.00702 **
## econ.freedom.5cat.Q 3.366e-02 1.112e-01 0.303 0.76257
## econ.freedom.5cat.C -1.960e-02 7.846e-02 -0.250 0.80316
## econ.freedom.5cat^4 7.461e-03 6.120e-02 0.122 0.90319
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3327 on 113 degrees of freedom
## (47 observations deleted due to missingness)
## Multiple R-squared: 0.447, Adjusted R-squared: 0.4078
## F-statistic: 11.42 on 8 and 113 DF, p-value: 9.284e-12
You should notice that the estimates for econ.freedom.5cat are appended with the notation for polynomial functions (.L, .Q, .C, and ^4).
Another way to verify that the variable is an ordered factor is to use the glimpse() function.
world %>%
select(regime.type3, econ.freedom.5cat) %>%
glimpse()
## Rows: 169
## Columns: 2
## $ regime.type3 <fct> Dictatorship, Parliamentary democ, Dictatorship, Dic…
## $ econ.freedom.5cat <ord> 4. Mostly unfree, 3. Moderately free, 5. Repressed, …
We can see that in the glimpse() output next to regime.type3 is <fct>, indicating that this variable is an factor (unordered), and next to econ.freedom.5cat is <ord>, which indicates that it is an ordered factor.
Going back to the regression model that includes econ.freedom.5cat, interpreting these polynomial function results isn’t particularly intuitive in this case. There a few ways to change how ordered factors are modeled, but we’ll look at two common approaches. First, we can create a copy of the econ.freedom.5cat variable and specify that we want the new version of the variable to be an unordered factor. This can be done by wrapping the variable in the factor() function and include the option ordered = FALSE.
world <- world %>%
mutate(econ.free.5uno = factor(econ.freedom.5cat, ordered = FALSE))
Now if we include our new variable in our regression model, we’ll get results that we can interpret in the same way we interpreted regime.type3.
mod5 <- lm(formula = peace.index ~ regime.type3 + gdp.percap +
frac.eth + econ.free.5uno,
data = world)
summary(mod5) # Show results.
##
## Call:
## lm(formula = peace.index ~ regime.type3 + gdp.percap + frac.eth +
## econ.free.5uno, data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.35116 -0.12323 0.06941 0.19744 0.71264
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 3.214e+00 2.476e-01 12.978 <2e-16 ***
## regime.type3Parliamentary democ 1.570e-01 8.569e-02 1.832 0.0696 .
## regime.type3Presidential democ -8.000e-03 7.653e-02 -0.105 0.9169
## gdp.percap 5.230e-06 2.582e-06 2.026 0.0452 *
## frac.eth -3.733e-02 1.399e-01 -0.267 0.7901
## econ.free.5uno2. Mostly free -2.002e-01 1.767e-01 -1.133 0.2597
## econ.free.5uno3. Moderately free -3.380e-01 2.010e-01 -1.682 0.0954 .
## econ.free.5uno4. Mostly unfree -4.756e-01 2.226e-01 -2.136 0.0348 *
## econ.free.5uno5. Repressed -6.129e-01 2.366e-01 -2.590 0.0109 *
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3327 on 113 degrees of freedom
## (47 observations deleted due to missingness)
## Multiple R-squared: 0.447, Adjusted R-squared: 0.4078
## F-statistic: 11.42 on 8 and 113 DF, p-value: 9.284e-12
The second approach to altering our ordered factor is to convert it into a numeric variable that we can then interpret as a continuous level measure. This can be done using the as.numeric() function. This will transform the ordered factor into a variable taking on values numbered 1, 2, 3, etc., matching the ordered categories.
world <- world %>%
mutate(econ.free.5num = as.numeric(econ.freedom.5cat))
When making this kind of change, it’s usually wise to check and make sure the newly created numeric variable is consistent with the original variable
# Original ordered factor.
world %>%
tabyl(econ.freedom.5cat)
## econ.freedom.5cat n percent valid_percent
## 1. Free 5 0.02958580 0.03067485
## 2. Mostly free 33 0.19526627 0.20245399
## 3. Moderately free 50 0.29585799 0.30674847
## 4. Mostly unfree 58 0.34319527 0.35582822
## 5. Repressed 17 0.10059172 0.10429448
## <NA> 6 0.03550296 NA
# New numeric version.
world %>%
tabyl(econ.free.5num)
## econ.free.5num n percent valid_percent
## 1 5 0.02958580 0.03067485
## 2 33 0.19526627 0.20245399
## 3 50 0.29585799 0.30674847
## 4 58 0.34319527 0.35582822
## 5 17 0.10059172 0.10429448
## NA 6 0.03550296 NA
The new numeric values match the original ordered categories. When including the new variable in our regression model, it’s important to keep in mind that higher values on this new scale indicate more economically repressed countries.
mod6 <- lm(formula = peace.index ~ regime.type3 + gdp.percap +
frac.eth + econ.free.5num,
data = world)
summary(mod6) # Show results.
##
## Call:
## lm(formula = peace.index ~ regime.type3 + gdp.percap + frac.eth +
## econ.free.5num, data = world)
##
## Residuals:
## Min 1Q Median 3Q Max
## -1.34940 -0.11999 0.06642 0.20370 0.71274
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 3.297e+00 2.111e-01 15.618 < 2e-16 ***
## regime.type3Parliamentary democ 1.535e-01 8.340e-02 1.840 0.06828 .
## regime.type3Presidential democ -8.227e-03 7.527e-02 -0.109 0.91316
## gdp.percap 5.451e-06 2.284e-06 2.386 0.01864 *
## frac.eth -3.425e-02 1.366e-01 -0.251 0.80239
## econ.free.5num -1.408e-01 4.625e-02 -3.044 0.00289 **
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.3285 on 116 degrees of freedom
## (47 observations deleted due to missingness)
## Multiple R-squared: 0.4464, Adjusted R-squared: 0.4225
## F-statistic: 18.7 on 5 and 116 DF, p-value: 1.351e-13
When including an ordinal variable in a regression model, we have to keep in mind that we are assuming that the distance between categories is equivalent. This isn’t always the case, which suggests that we should be cautious when interpreting the estimated effects of our ordinal independent variables.
Regression tables
Although summary() will often give us everything we need to interpret our regression model results, it doesn’t provide us with a way to easily get these results into a presentable format for a report or paper. Additionally, we will often want to present the results of several regression models side-by-side to make comparison and interpretation more straightforward. Fortunately, we can use the stargazer package to help with this.
#install.packages("stargazer")
library(stargazer)
stargazer(mod1, type = "text")
##
## ===============================================
## Dependent variable:
## ---------------------------
## peace.index
## -----------------------------------------------
## fh.democ.score 0.011***
## (0.001)
##
## Constant 2.324***
## (0.061)
##
## -----------------------------------------------
## Observations 161
## R2 0.446
## Adjusted R2 0.443
## Residual Std. Error 0.377 (df = 159)
## F Statistic 128.168*** (df = 1; 159)
## ===============================================
## Note: *p<0.1; **p<0.05; ***p<0.01
In this example we use the stargazer() function to create a table of the bivariate regression results from earlier. You can see that get nearly the same information as summary() just in a nicer format. Next, we can show the results from mod1 and mod2 together in the same table.
stargazer(mod1, mod2, type = "text")
##
## ====================================================================
## Dependent variable:
## ------------------------------------------------
## peace.index
## (1) (2)
## --------------------------------------------------------------------
## fh.democ.score 0.011*** 0.007***
## (0.001) (0.001)
##
## gdp.percap 0.00001***
## (0.00000)
##
## frac.eth -0.106
## (0.128)
##
## Constant 2.324*** 2.438***
## (0.061) (0.099)
##
## --------------------------------------------------------------------
## Observations 161 145
## R2 0.446 0.504
## Adjusted R2 0.443 0.493
## Residual Std. Error 0.377 (df = 159) 0.342 (df = 141)
## F Statistic 128.168*** (df = 1; 159) 47.699*** (df = 3; 141)
## ====================================================================
## Note: *p<0.1; **p<0.05; ***p<0.01
One important change you probably want to make to the output of stargazer() is the levels used to indicate statistical significance. By default the table will include a star indicator for coefficients that meet a p-value cutoff of 0.10, which is not the standard we want to use. At a minimum we want a p-value below 0.05 in order to conclude that an estimated effect is statistically significant. We can change the star indicators by using the star.cutoffs = option.
stargazer(mod1, mod2, type = "text",
star.cutoffs = c(0.05, 0.01, 0.001))
##
## ====================================================================
## Dependent variable:
## ------------------------------------------------
## peace.index
## (1) (2)
## --------------------------------------------------------------------
## fh.democ.score 0.011*** 0.007***
## (0.001) (0.001)
##
## gdp.percap 0.00001***
## (0.00000)
##
## frac.eth -0.106
## (0.128)
##
## Constant 2.324*** 2.438***
## (0.061) (0.099)
##
## --------------------------------------------------------------------
## Observations 161 145
## R2 0.446 0.504
## Adjusted R2 0.443 0.493
## Residual Std. Error 0.377 (df = 159) 0.342 (df = 141)
## F Statistic 128.168*** (df = 1; 159) 47.699*** (df = 3; 141)
## ====================================================================
## Note: *p<0.05; **p<0.01; ***p<0.001
Now the p-value cutoffs are the same as those included in the summary() output, where one star indicates significance at the 0.05 level. This table makes it much easier to compare the estimated effects of democracy on peace for our two models.
Helpful links
Google. You are definitely not the only person looking for answers to questions you have about R. Many of these questions are asked on sites like Stack Overflow, Stack Exchange, Posit Community, and Reddit, where more experienced R users often give useful responses.
William Franko
Associate Professor
Director of Graduate Studies
Department of Political Science
My research focuses on the causes and consequences of political and economic inequality.
